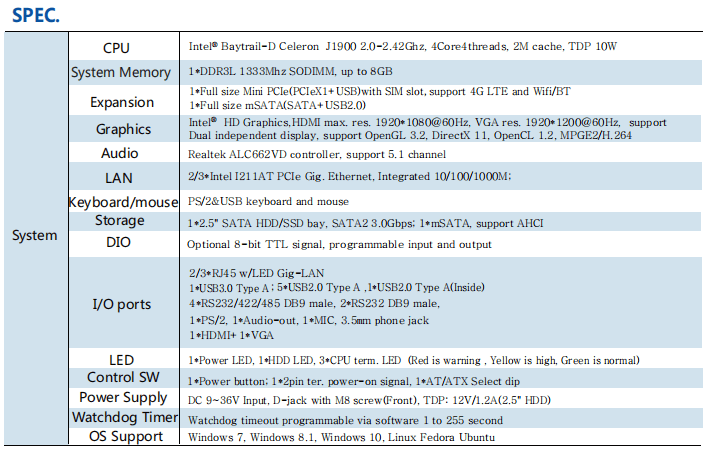

[Specification]

1.Color:Silver & Grey

2.Net weight:TBD

3.Mounting:Desktop Mounting

4.Dimension:(W*H*D)：268*160*57.6mm

5.Operating temperature:

-20°C~65°C – Fanless with wide operating temp. SSD, Airflow

-10°C~55°C – Fanless with HDD, Airflow

6.Storage temperature:-40°C~85°C

7.Storage Humidity:10~90%@40°C, Non-condensing

8.Vibration:

5 grms/5~500Hz/ random/in working(SSD);
1 grms/5~500Hz/random/in working(HDD)

9.Shock:

50g peak acceleration(11ms duration)(SSD);
20g peak acceleration(11ms duration)(HDD）

10.Certification/EMC:CE/FCC Class A

11.Structure:aluminum chassis, SGCC frame

[Key features]

-Aluminum chassis, fanless design

-Intel® Baytrail Celeron J1900 2.0-2.42 CPU

-1*DDR3L 1333MHz SODIMM, Up to 8GB

-1*HDMI, 1*VGA, Dual independent display

-2/3*Gig LAN, 1*USB3.0, 6*USB2.0(one inside)

-6*COM, Optional 8-bit DIO, 1*Audio out, 1*MIC

-1*Mini-PCIe(PCIeX1+USB), 1*PS/2

-1*F-mSATA, 1*2.5" SATA HDD/SSD driver

-DC 9~36V Wide Power Input

[Applications]

Iot terminal, automation and manufacture application.

[Certification]

CE/FCC Class A
