What is IoT?

The Internet of Things, or “IoT” for short,refers to the billions of physical devices around the world that are now connected to the internet,  is a interaction between the physical and digital worlds using sensors and actuators.The purpose of the IoT is to make all objects have the computer intelligence , connecting smart objects with the network,all collecting and sharing data.



The development trend of IoT in the world

Roberto Barriga, professor of the Global MBA in Digital Business and specialist in Industrial Digital Transformation, describes the Internet of Things (IoT) as one of the driving forces of Industry 4.0.

According to statista data, by the end of 2020, the number of global IoT devices will exceed 30.73 billion units ,which means we will enter the next decade, accompanied by a new ecosystem driven by numbers.

Industry 4.0 /IA Digitalization
1.Data Collection
2.Edging Connection / Computing
3.Platform and Value drive

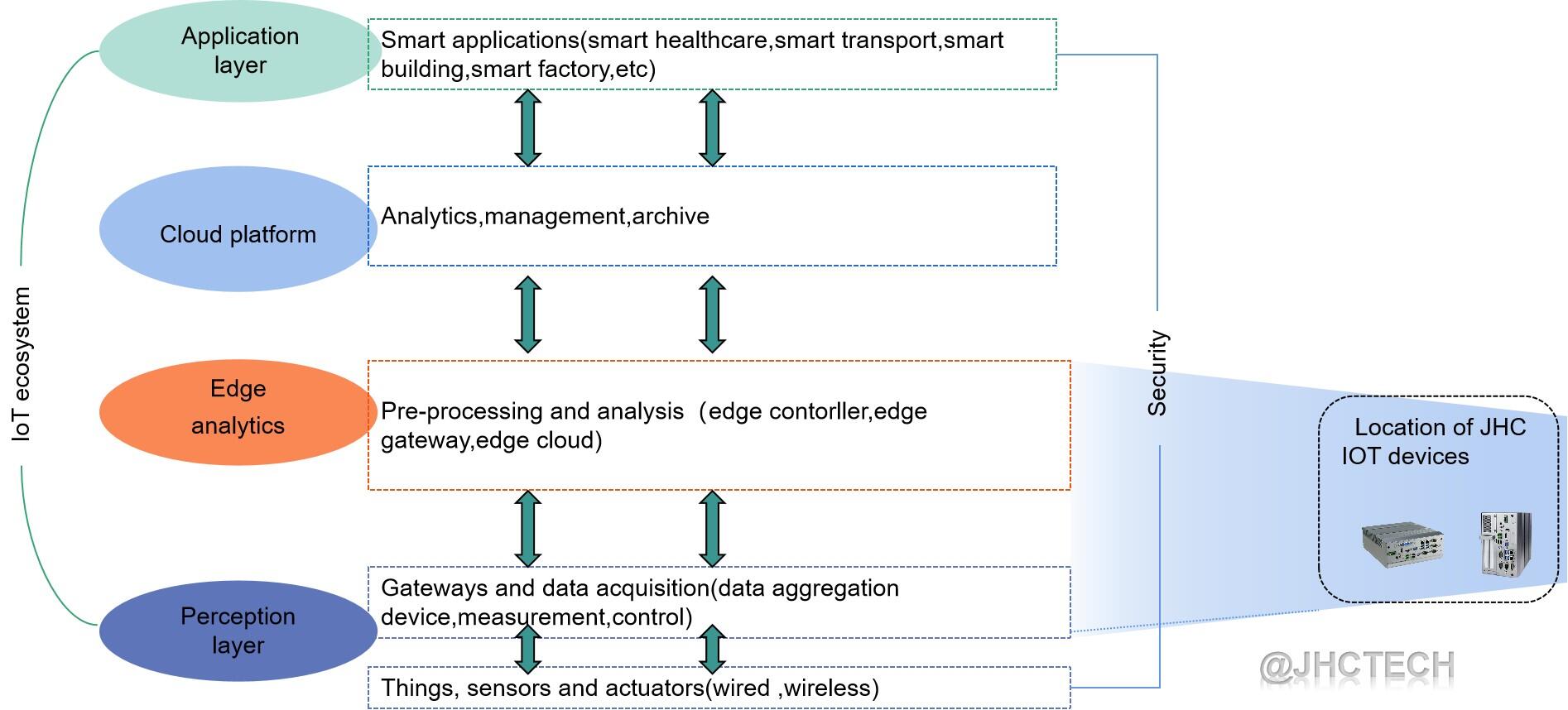

IoT Ecosystem-——4 Layer Architecture

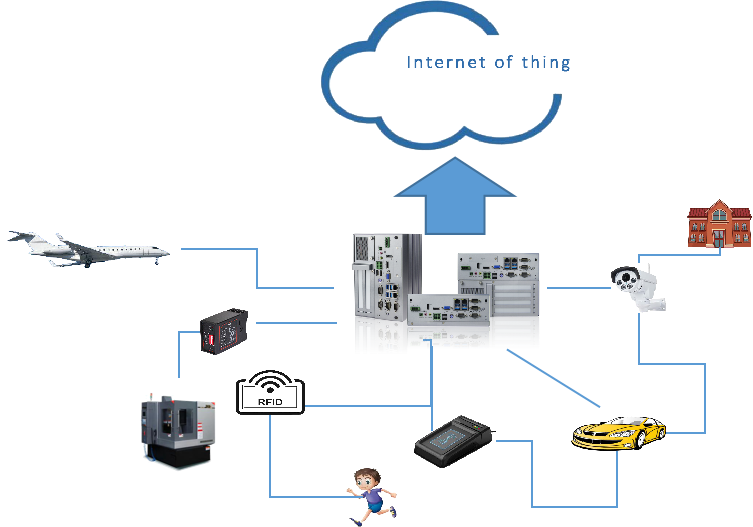

In the IoT ecosystem, JHC’s IoT box computer play a important role for IoT solutions, especially at data control ,data management and edge computing layer. We also called them “IoT computer”collectively.(Hereafter referred to as“IoT computer”)



IoT application

Under the wide background of economy globalization, IoT technology has spread to all walks of life in the information age. From the perspective of data analysis and real-time sensing needs, IoT is already being deployed extensively and actively, in various domains, such as follows:

JHCTECH has been settling down to IoT for many years, and covers various application filed. ETC of expressway is one of our typical solutions.

JHCIoT computer for ETC

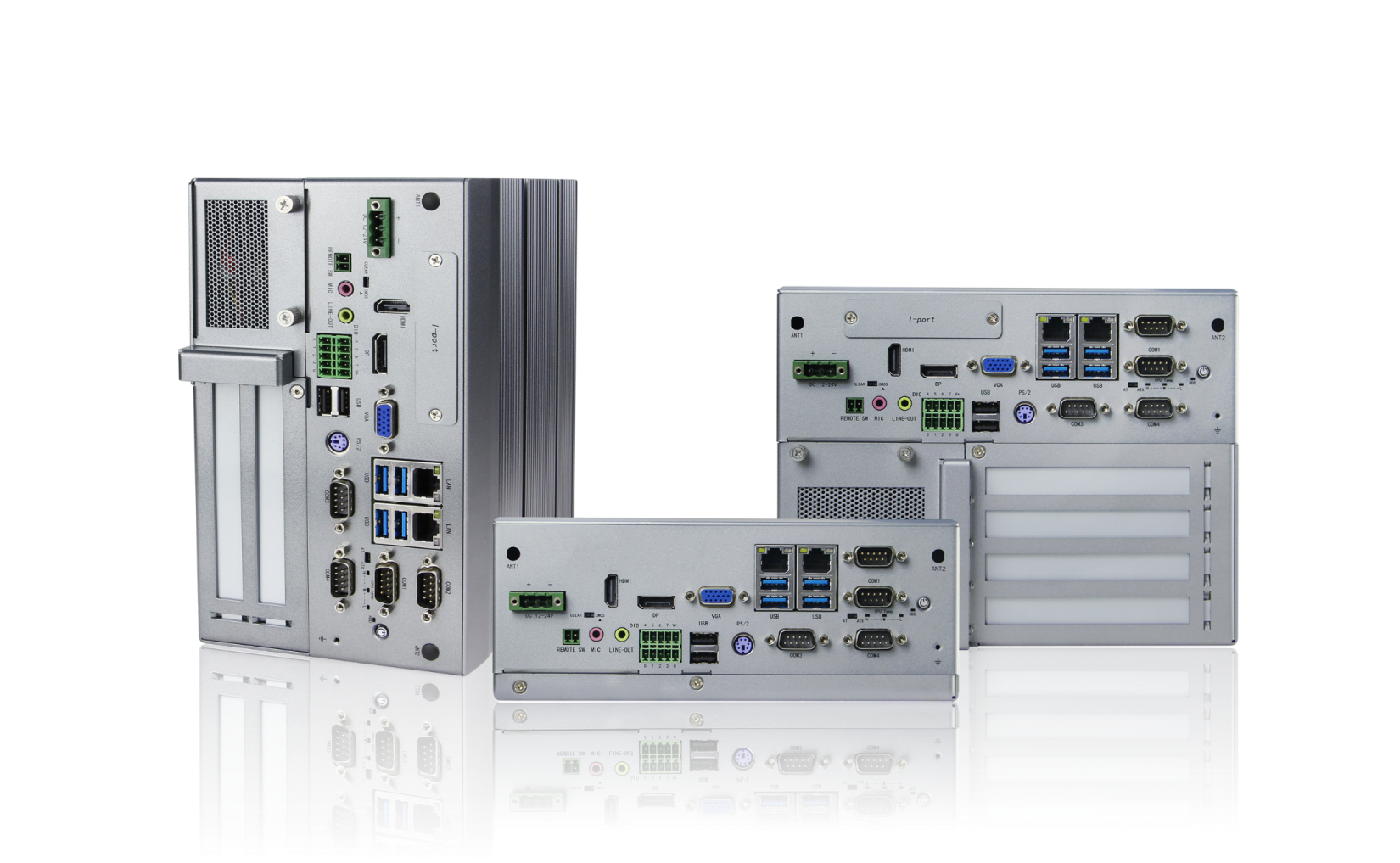

 Some time ago, Intel and JHCTECH jointly create ETC solutions based  on Intel® Architecture. In the ETC system, JHC‘s  IoT PC plays a vital  role.Recommended models: KMDA-3610, KMDA-3920,KMDA-3921.

 They have the advantages of strong processing power, low power  consumption, scalable performance, ultra high security and reliability,     remote management and so on.



 The various models, application scenarios and technical parameters of  the above ETC IPC products are shown in Table 1.

ModelKMDA-3610KMDA-3920KMDA-3921
Type of ETC station/LaneGantry StationETC Lane(Non-Gantry Station)ETC/MTC Mixed Lane(Non-Gantry Station)
CPUIntel®Core I3/I5/I7 CPU(Standard Edition)
ChipsetIntel®H110/Q170Intel®Q170Intel®H110/Q170
Memory2*DDR4-2400MHz,Maximum32GB
Extension SlotsMini PCIe1*PClex16,1*PClex4
               Mini PCIe
1*PClex16, 1*PClex1,2*PCl,Mini PCIe
Ethernet Controller1*Intel I211AT,1*Intel I219LM,2*RJ45

vProTM JHCTECH® Remote Management View Software based on Intel® iVpro Technologu
RAIDSupport
SATA2*SATA3.0, 1*M.2,1*mSATA
Display1*DP, 1*HDMI,1*VGA
COM2*RS232,2*RS4858*RS232,2*RS4852*RS232,2*RS485
AudioLine out,Microphone
DIO8-or 16-bit
Operating Temperature’-20°C~65°C



Two project cases

National Expressway G65 (Baomao Expressway):

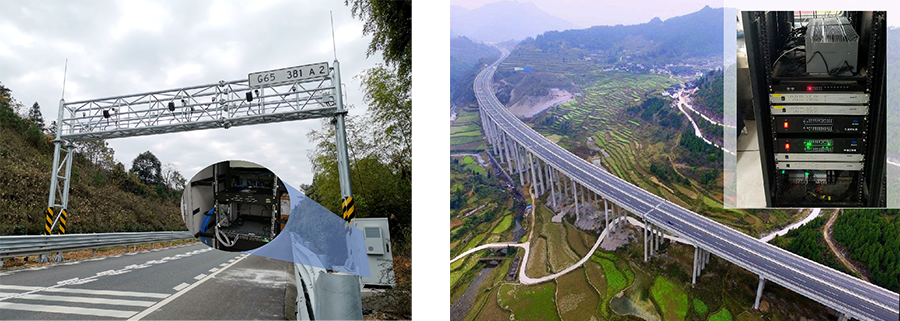

This expressway crosses the mountainous areas in Hunan Province, with frequent climate change, large elevation rise and fall, and harsh environment. Various models of JHCTECH® ETC IPCs, which are based on Intel® Architecture, have been widely deployed in the Province-Border Gantry Stations, Non-Border Gantry Stations and Non-Gantry Stations at various entrances and exits (Figure 2), fully satisfying the requirements of ETC users.



National Expressway G93 (Chengdu-Chongqing Ring Expressway):

The traffic flow of some sections of this expressway reaches about 30,000 vehicles per day2 during holidays, which poses a great challenge to the ETC system. After using JHCTECH® ETC IPCs based on Intel® Architecture, the traffic management authorities can process the ETC billing data at very high speed, and meet the requirements of both stability and reliability, relieve the bottleneck effect caused by the MTC or province-border physical toll stations, and further improve the traffic efficiency of the expressway.



Principle of application

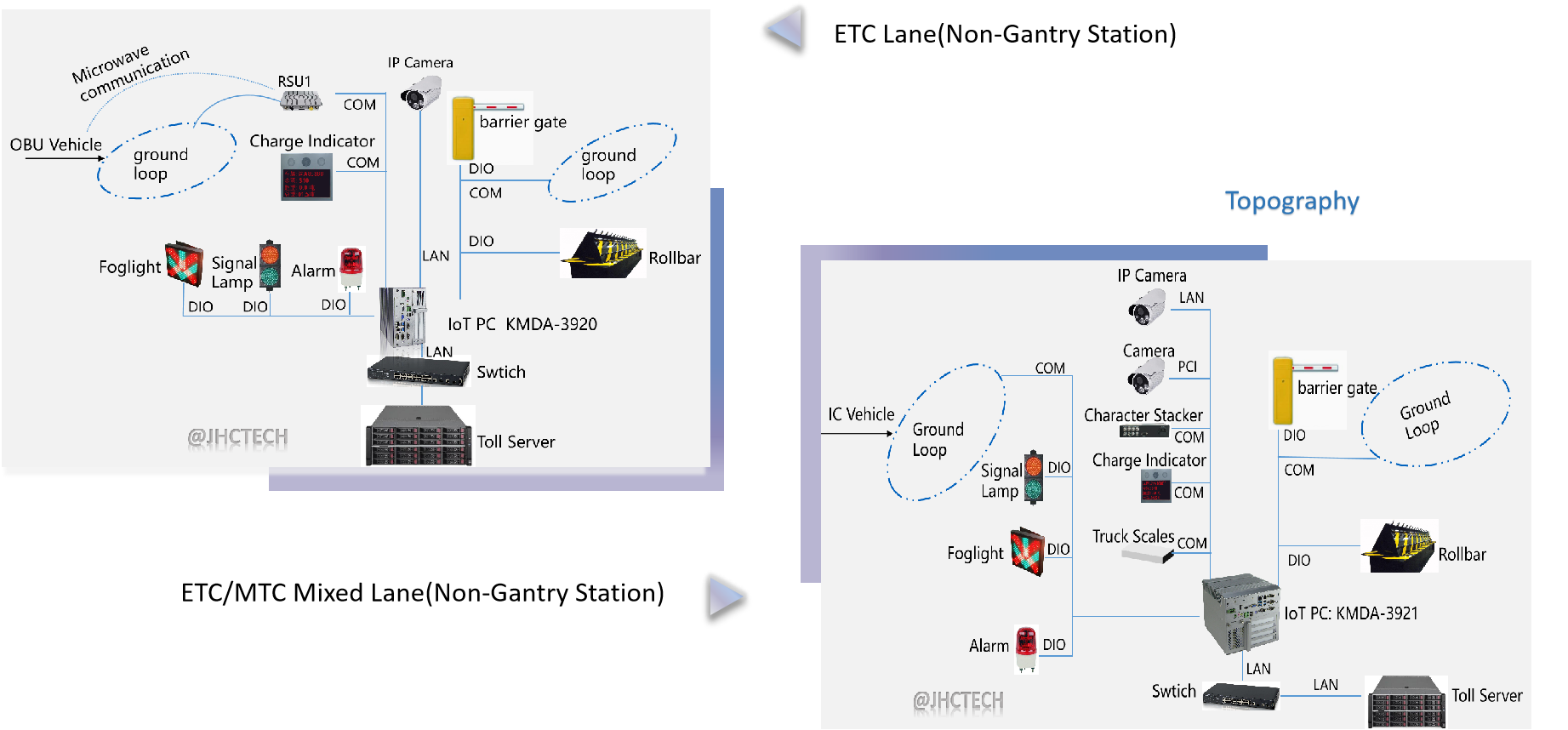

They are designed for industrial control. In the intelligent transportation system (ITS for short), JHC’s IoT computer connects to external data collection devices through wired or wireless communication to obtain data sources, monitor and control vehicle and road conditions, performs data integration, data pre-processing, device management, and edge analysis on the edge, filters useful data, and aggregates these data to upload to implement predictive analysis, providing reliable real-time information for decision-making, so that intelligent transportation systems can respond quickly to events.





Highlight

1、Multiple wireless and wired communications

Support 4G/Wifi/BT wireless communication, all are equipped with COM (RS-232/422/485) interface,VGA/HDMI/DP 3 independent display interface、 USB3.0 and MiniPCIe extension port,Gigabit LAN, support Common Industrial Protocol.Can well meet various network requirements.

2、Reliability and security

Rugged fanless design

Wide temperature: -20°C~65°C

Wide range power input: DC 12~24V

Have the extreme reliability of dust-proof, corrosion-resistant,

anti-shock and anti-electromagnetic-interference, and can operate stably under the harsh environmental conditions;

TPM2.0 secure encrypted transmission.

3、Real-time

Online mornitor and control in time ,and quickly respond to changes in operating conditions, self-reset in distress, to ensure the normal operation of the system.

4、Expandability

With strong input and output functions( rich I/O interfaces), it can be connected to various peripherals, channel controllers, video monitoring systems, vehicle testers and etc  to complete various tasks. And support individual customization to meet diverse elastic needs.
5、Compatibility

Support various operating systems, multi-language assembly, multi-task operating system.



Intel® Skylake-S/Kabylake-S CPU, 2*LAN, 4*USB3.0, HDMI, DP, VGA, 3 displays, 2*SATA3, DC-IN 12~24V.



Intel® Skylake-S/Kabylake-S CPU, 2*LAN, 4*USB3.0, HDMI, DP, VGA, 3 displays, PCIeX16+PCIeX4 or 2*PCI expansion slot, DC-IN 12~24V.

CPU Intel®Skylake-S / Kabylake-S, 2 * LAN, 4 * USB3.0, HDMI, DP, VGA, 3 pantallas,10 * COM, 16 + 16-bit DIO, ranura de expansión PCIeX16 / PCI, DC-IN 12 ~ 24V.

Intel® Skylake-S/Kabylake-S CPU, 2*LAN, 4*USB3.0, HDMI, DP, VGA, 3 displays, PCIe X16+PCIe X1+2*PCI expansion, DC-IN 12~24V.
